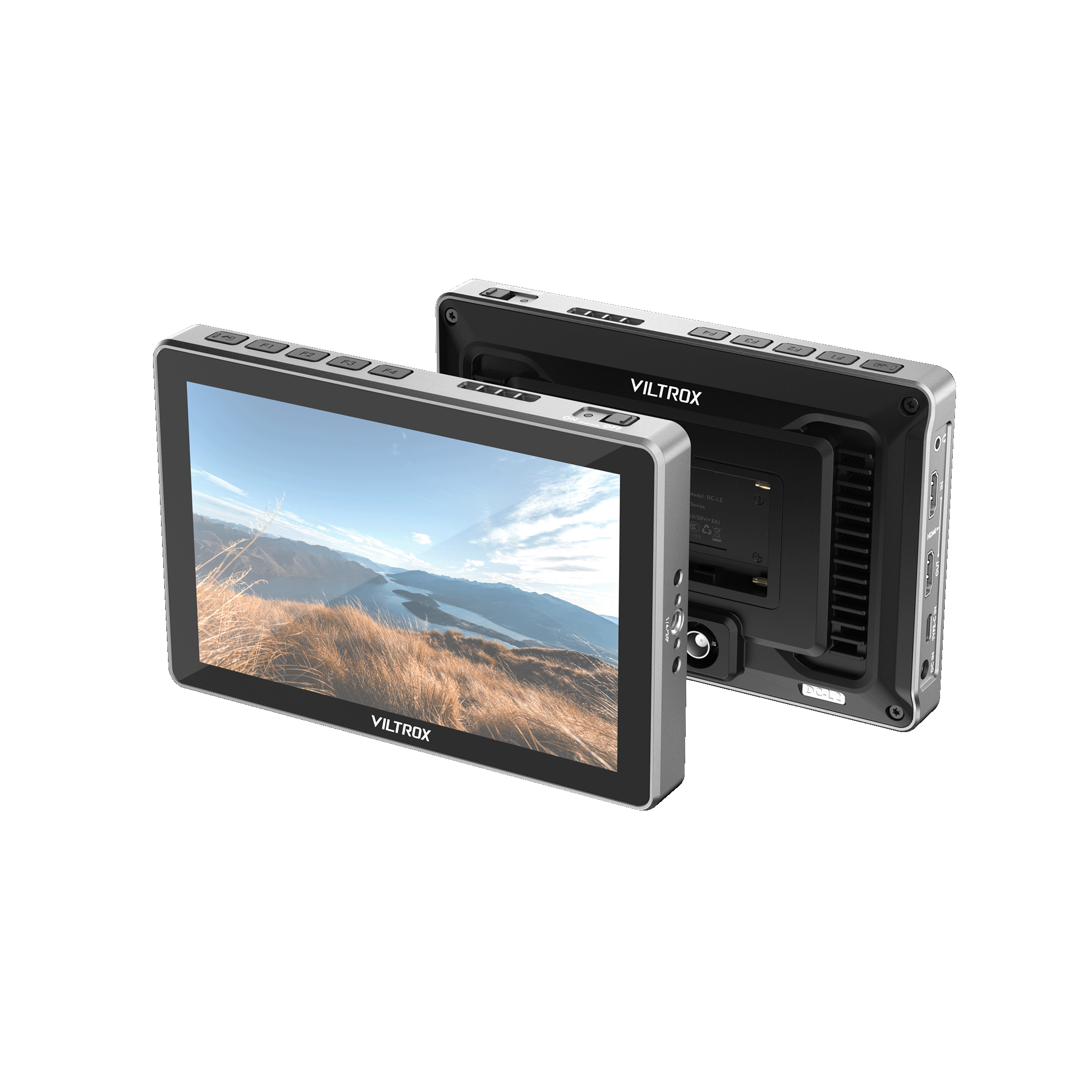

Viltrox DC-L 600 Nits 7-Inch Camera Monitor

True-to-Life Color Accuracy
8-bit color depth with 100% sRGB (±3%) and Rec.709 compliance—every frame rendered with cinematic precision.

Wide Viewing, Clear Monitoring
170° ultra-wide IPS screen and 1000:1 contrast ensure consistent clarity from any angle.

Professional 4K Input & SDI Expansion
Supports 4K HDMI loop-out and SDI (DC-L2), seamlessly connecting with high-end production systems.

Advanced Monitoring Tools Built-In
Waveform, histogram, focus peaking, false color, LUT table, de-squeeze, and more—all essential tools in one.

Intuitive Touch & Custom Controls
Full-screen touch and customizable shortcut keys offer fast, flexible operation on set.

Power Flexibility, Ready Anywhere
Runs on NP-F battery, DC input, or Type-C, perfect for indoor studio or outdoor shooting.

Specification

Display Screen:

7-Inch IPS Touch Screen

Resolution:

1280 X 800

Aspect Ratio:

16:10

Contrast:

1000:1

Refresh Rate:

60Hz

Screen Brightness:

600cd/m²

Viewing Angle:

170º

Pixel Density:

215PPI

Color Gamut:

SRGB

Color Depth:

8Bit

Input Interface:

DC-L1: HDMI 1.4 IN

DC-L2: HDMI 1.4IN/ SDI IN

Output Interface:

DC-L1: HDMI 1.4 OUT

DC-L2: HDMI 1.4 OUT/ SDI OUT

Weight:

DC-L1: ≈367g(Monitor)

DC-L2: ≈392g(Monitor)

Dimensions:

DC-L1: 178.7 X 119.7 X 28mm

DC-L2: 178.7 X 119.7 X 30.5mm

USB Interface:

Support of USB upgrade and 3D Lut file input

Audio Output:

Headphone jack ф3.5mm

Power interface

DC10V-18V=2A;Type-C≥9V=3A,(9V/12V/15V/20V=3A)

Applicable Battery:

Lithium Battery NP-F550/F750/F970

Working Temperature:

0ºC ～ 40ºC

Storage Temperature:

-20ºC ～ 60ºC
Model
$222.00
$222.00
Quantity

secure payments

Visa, Mastercard, Amex, Discover, JCB, Diners Club, Maestro, PayPal

Satisfied or refunded

Return or exchange within 14 days after receipt

Quality guarantee

Easy replacement/ refund one year warranty

Local warehouse

Fast shipping from local EU & US warehouse
Viltrox DC-L 600 Nits 7-Inch On-Camera Monitor

DC-L Camera Monitor

7-inch 丨 IPS 丨 Touch screen

DC-L Camera Monitor

7-inch 丨 IPS 丨 170° Viewing Angle

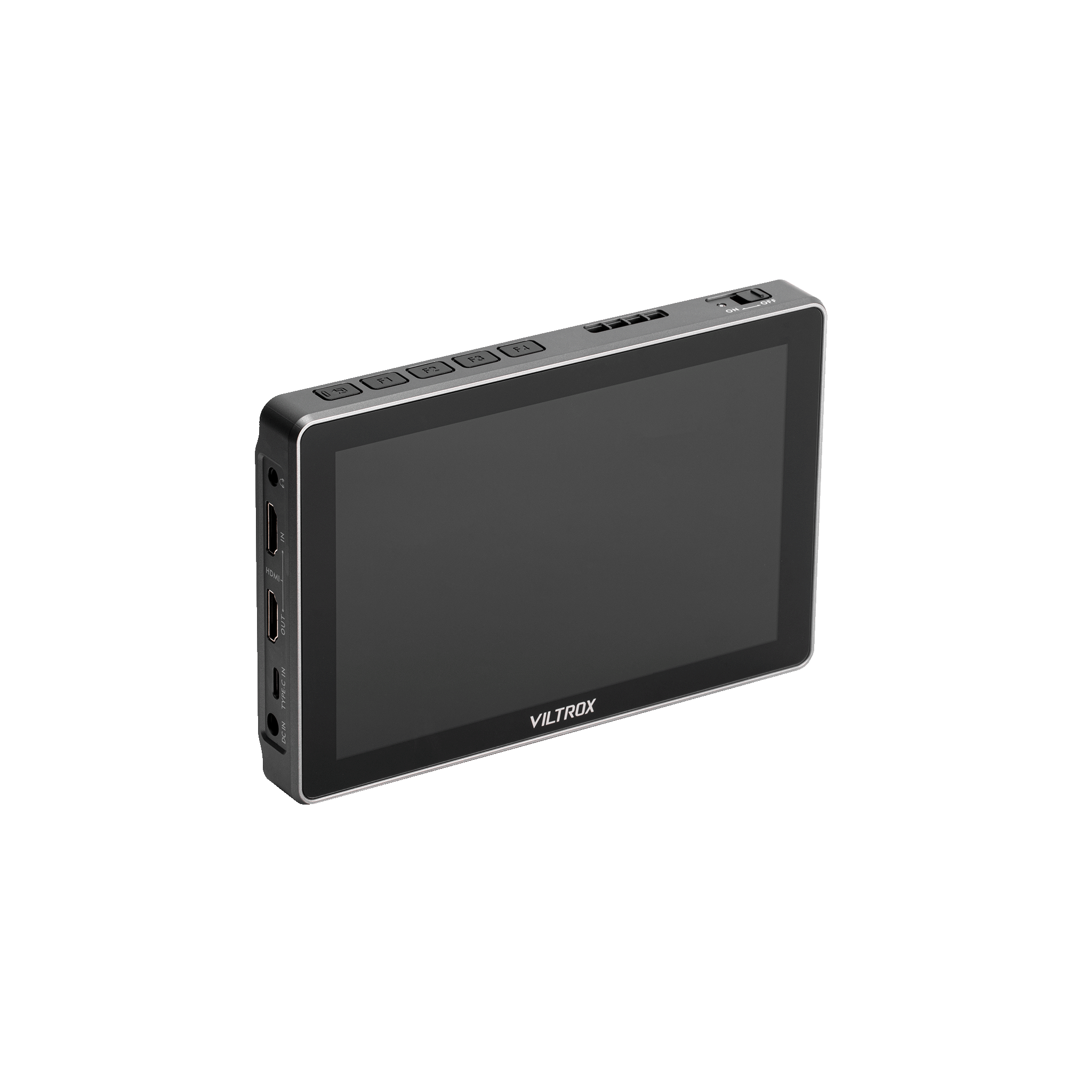

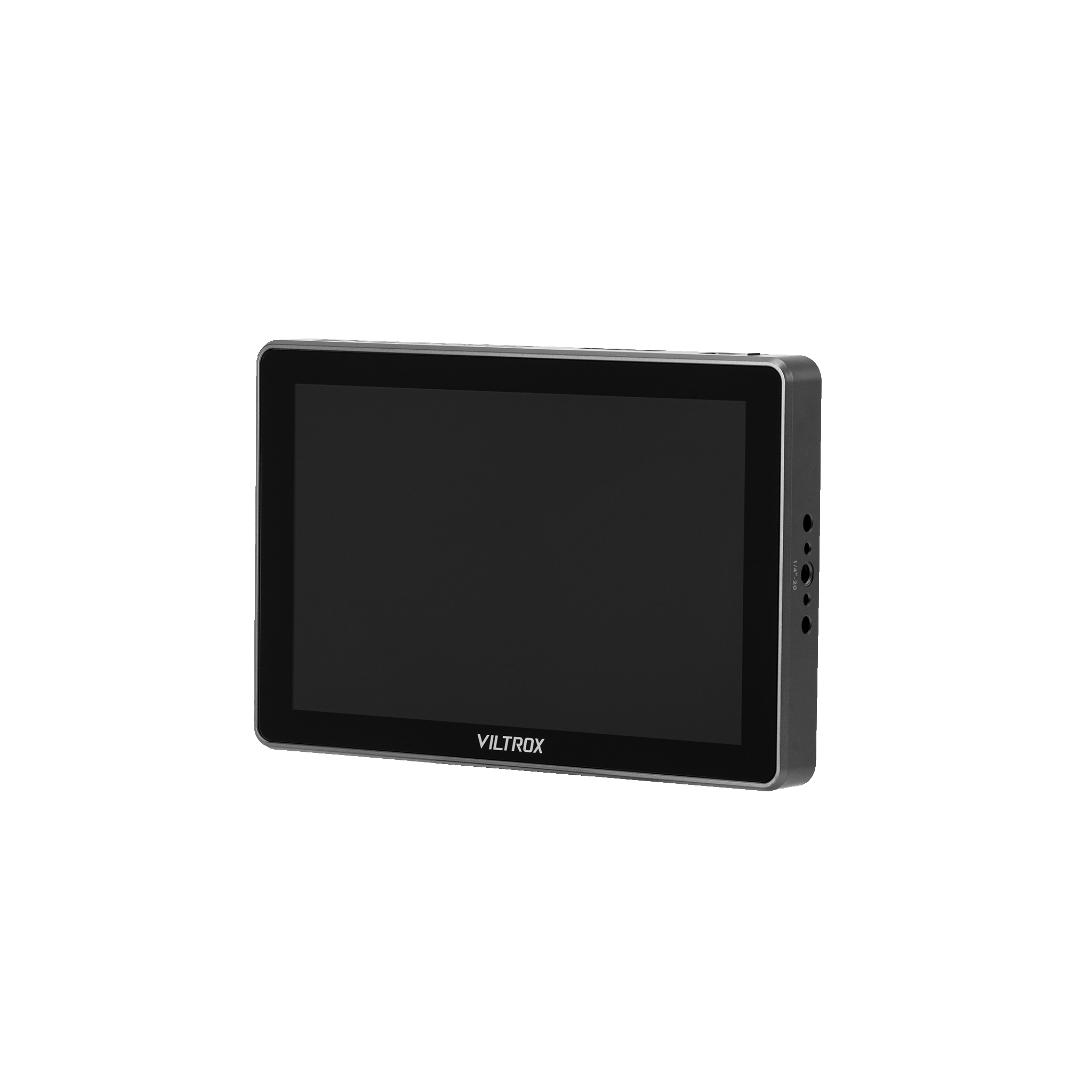

7-Inch Large IPS Screen

Multi-angle frame for a detailed and immersive monitoring experience.

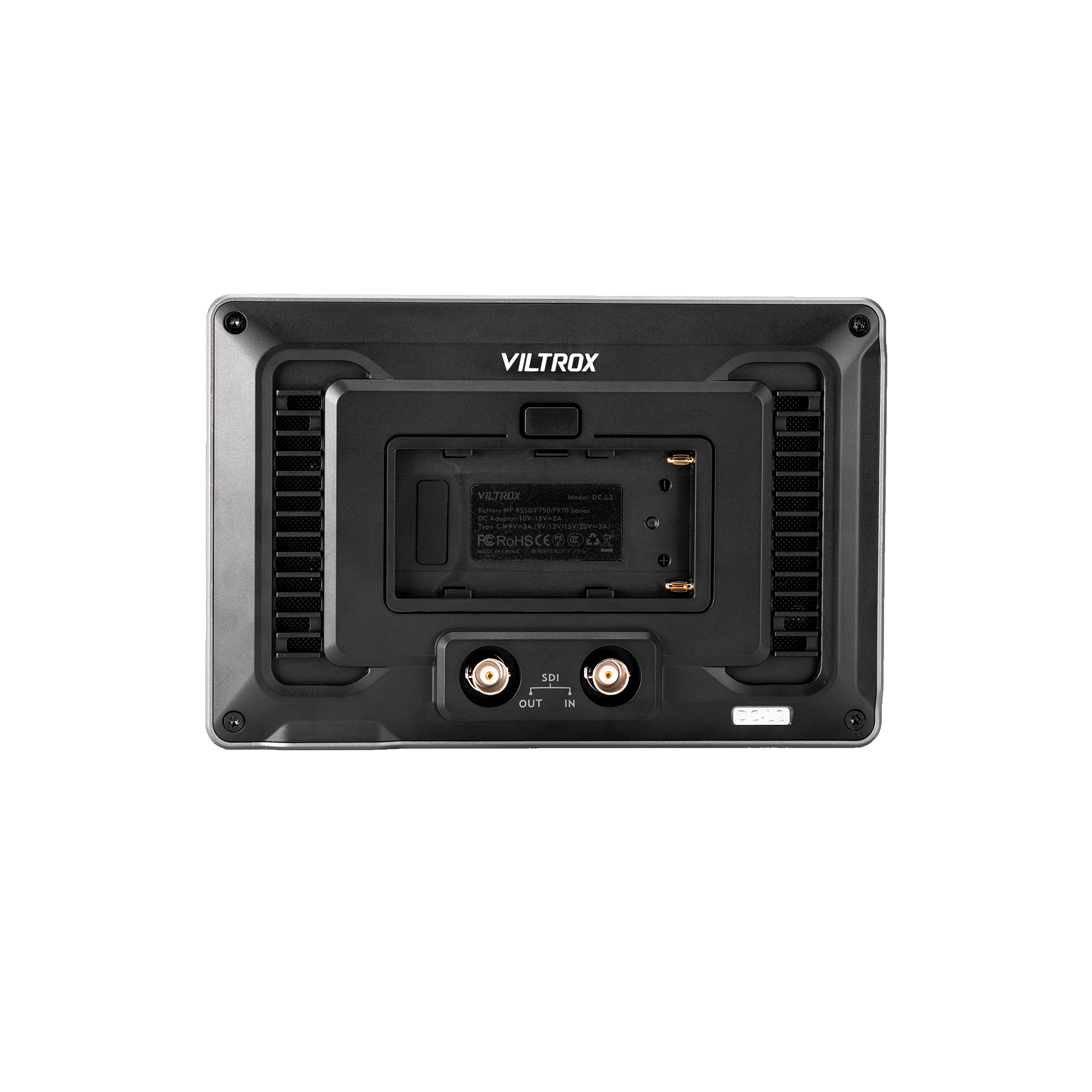

Professional SDI Interface

The DC-L2 monitor features an expanded SDI interface, enabling connection to more professional equipment and meeting the high standards of professional film crews and production sets.

Highly Efficient Control System

Efficient Control System

The DC-L series is equipped with a comprehensive and efficient control system design. The customizable shortcut keys help to quickly select and set functions, greatly improving photography efficiency.

Full-Screen Touch Control

Responsive full-screen touch functionality across the entire DC-L series—instant control with a single touch.

4K Transmission, Smooth Monitoring Experience

Supports up to 4K 60Hz signal input/loop out
The DC-A1 offers 4K resolution at 60Hz, delivering lossless, high-definition signal transmission for a crystal-clear, smooth monitoring experience. Ideal for professional film crews, it meets the demanding standards of high-quality production.

DC-L1: HDMI Input/Output

DC-L2: SDI+HDMI Input/Output

Ample 600 Nits Brightness, Optimal Comfort

Reliable 600-nit brightness delivers clear visibility even under harsh lighting, ideal for extended on-set monitoring without eye strain.

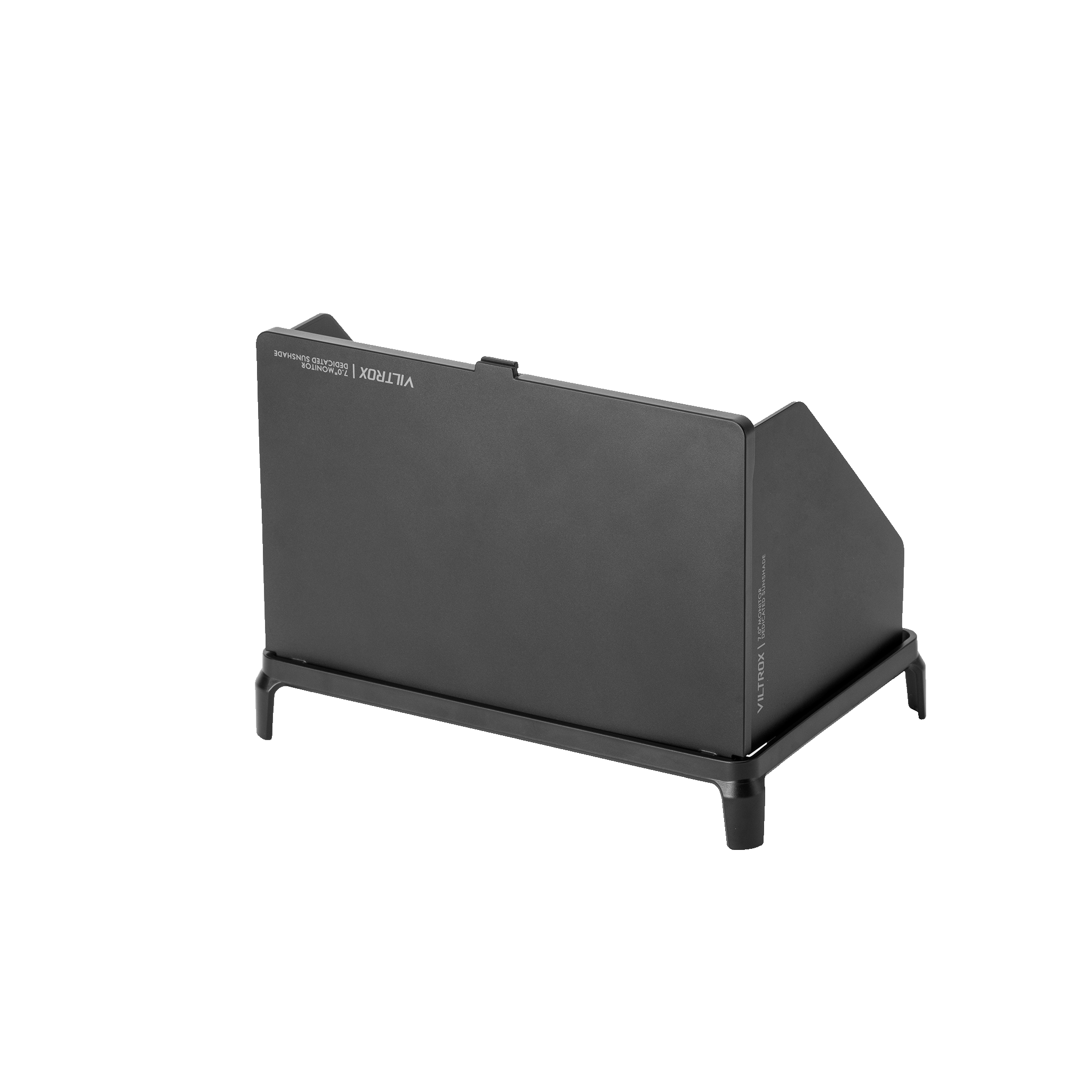

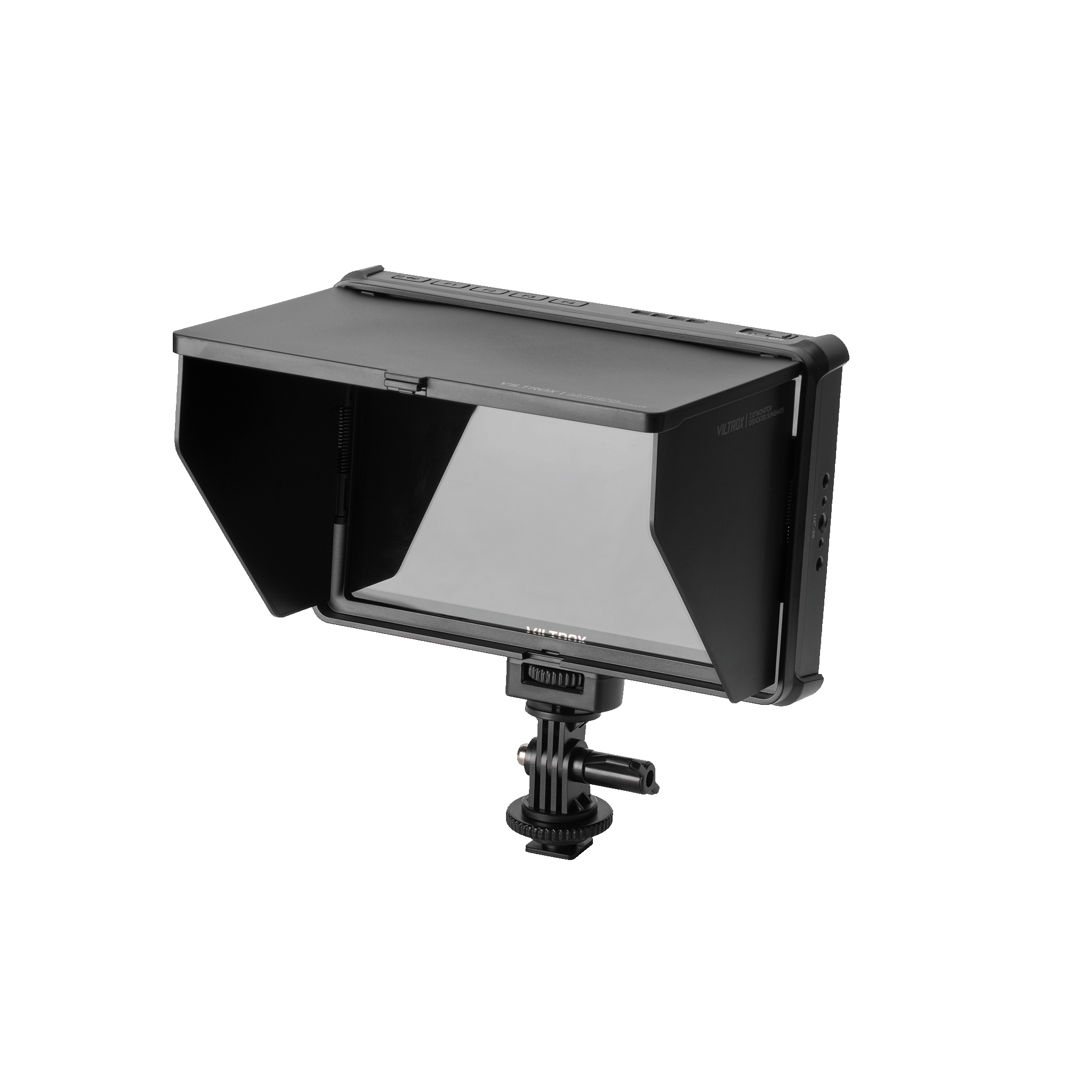

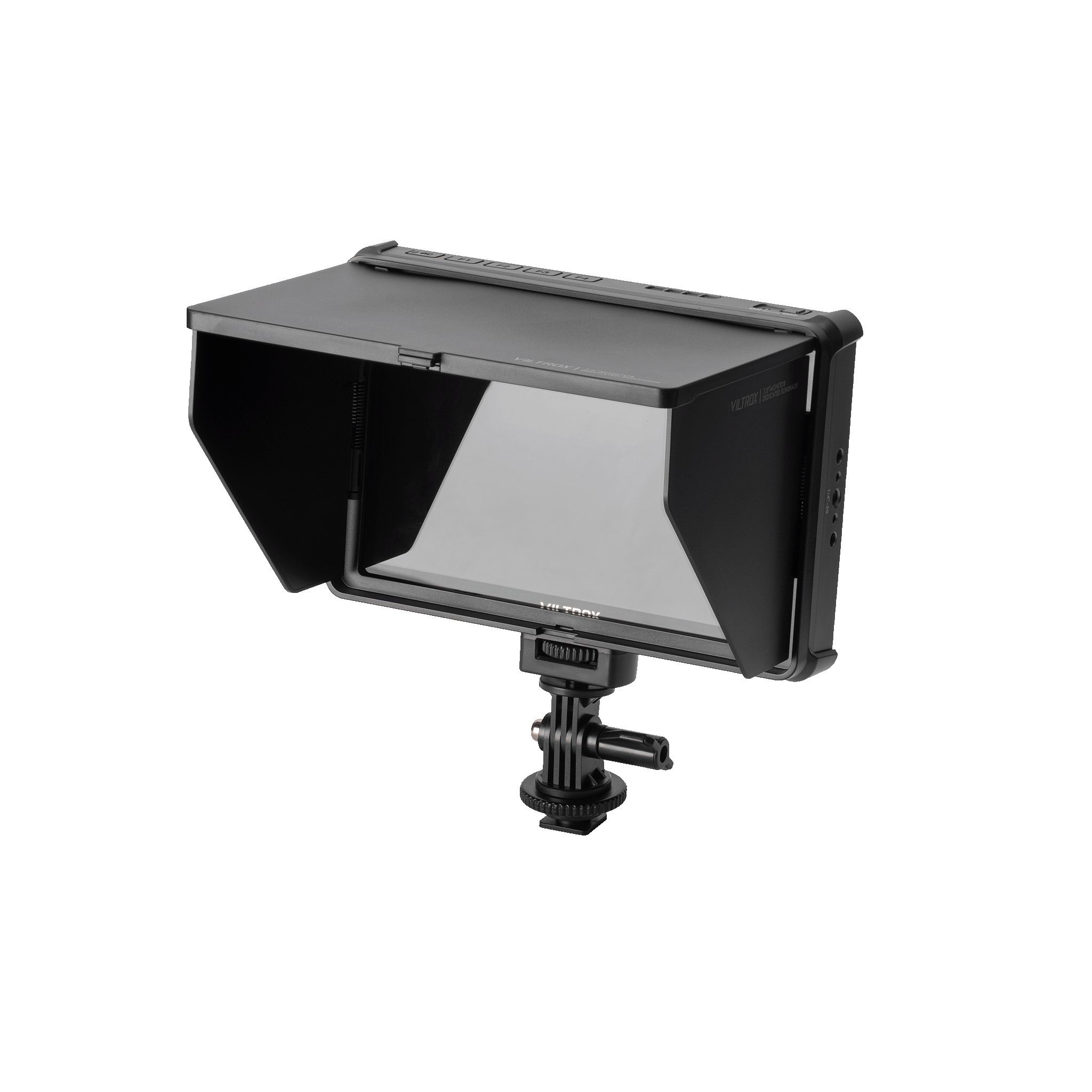

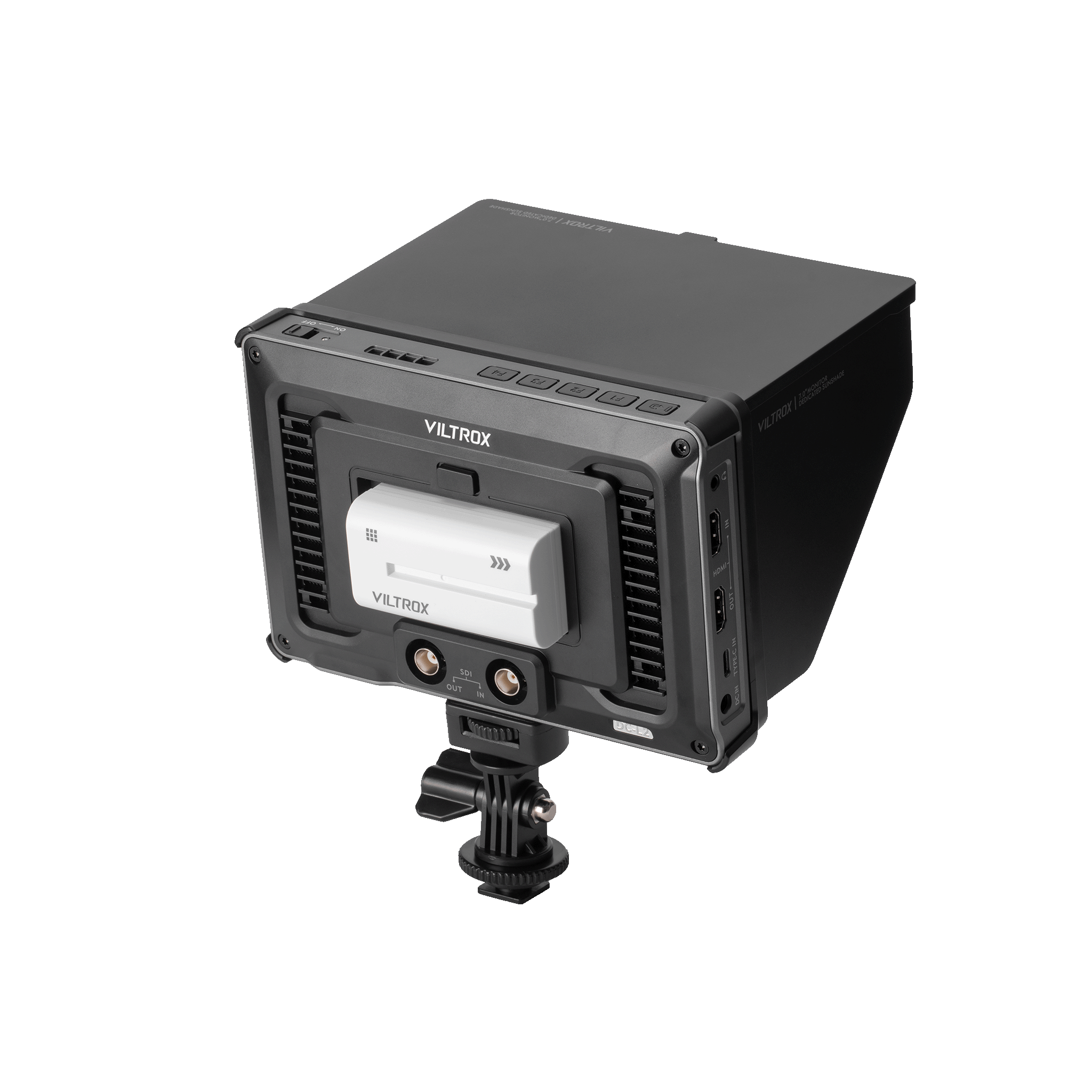

Detachable Sun Hood Design

Quick-release and foldable sun hood.

Flip open to block strong light interference effectively;

Flip shut to maximize space efficiency.

Comprehensive Professional Monitoring Tools

Equipped with an extensive suite of professional assist features including histogram, false color, parade waveform, peaking, vectorscope, de-squeeze, LUT table, and more—everything you need for precise visual control in one screen.

#Custom 3D LUT

Import up to 20 user-defined 3D LUTs via USB, real-time monitoring with any camera’s Log profile, color preview on set.

#False Color

Visualize exposure levels with precision—false color overlays help you identify underexposed or overexposed areas instantly.

#Zebra Pattern

Quickly detect overexposed areas, zebra stripes provide a clear, adjustable threshold for precise exposure monitoring.

#Focus Peaking

Highlight in-focus edges with precision, ensuring fast and accurate manual focusing, even in dynamic shooting conditions.

#Full Waveform

Visualize detailed luminance and color information, for fine-tuning exposure, contrast, and color balance with studio-level accuracy.

#Frame Freeze

Freeze any frame instantly, perfect for checking composition, focus, and exposure with precision before the next take.

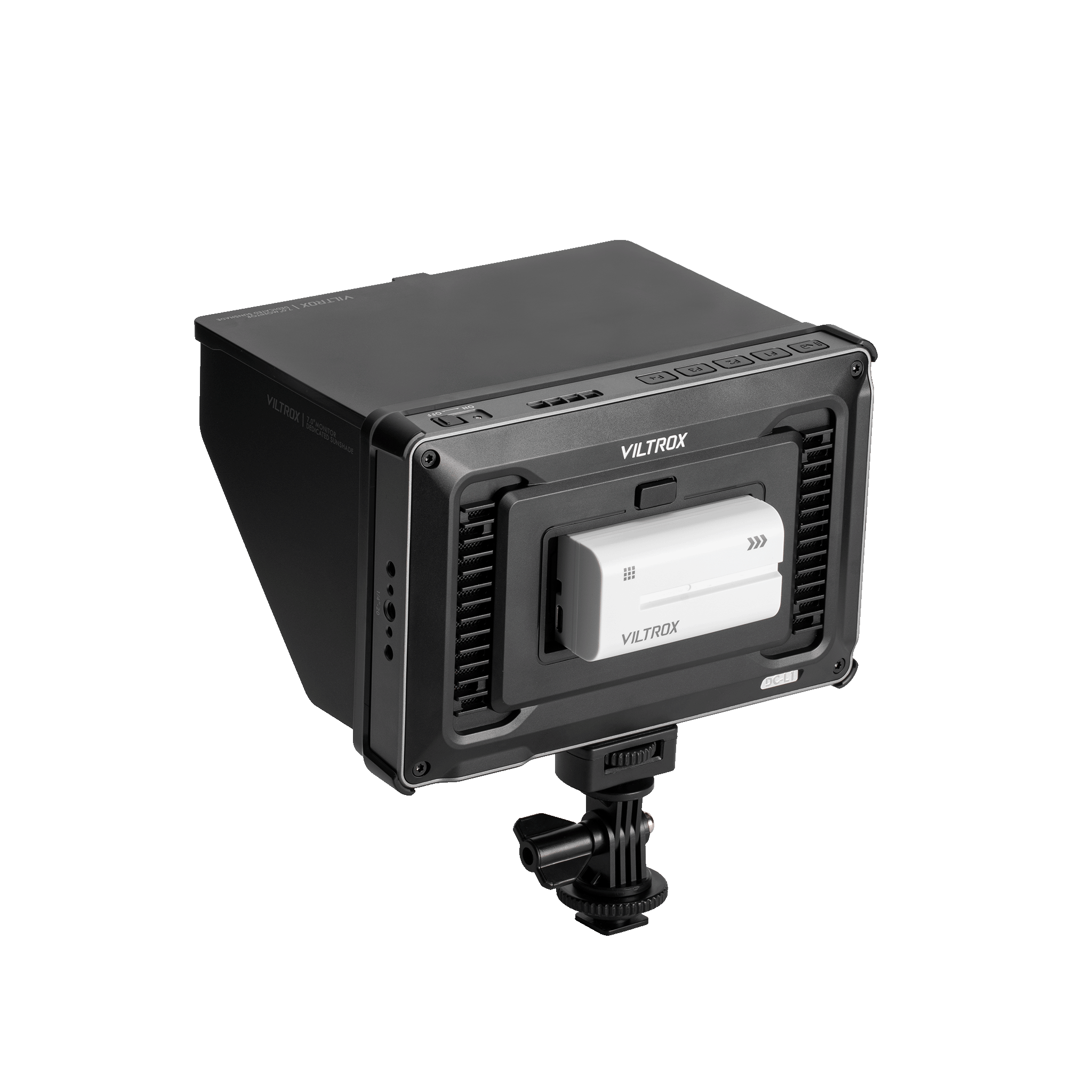

Versatile Power Options

Long-lasting Battery Life, Shoot Without Limits

Supports NP-F series batteries, DC IN (DC power supply), and Type-C power—ensuring reliable, long-lasting performance for shoots that go the distance.

Monitor Parts Identification

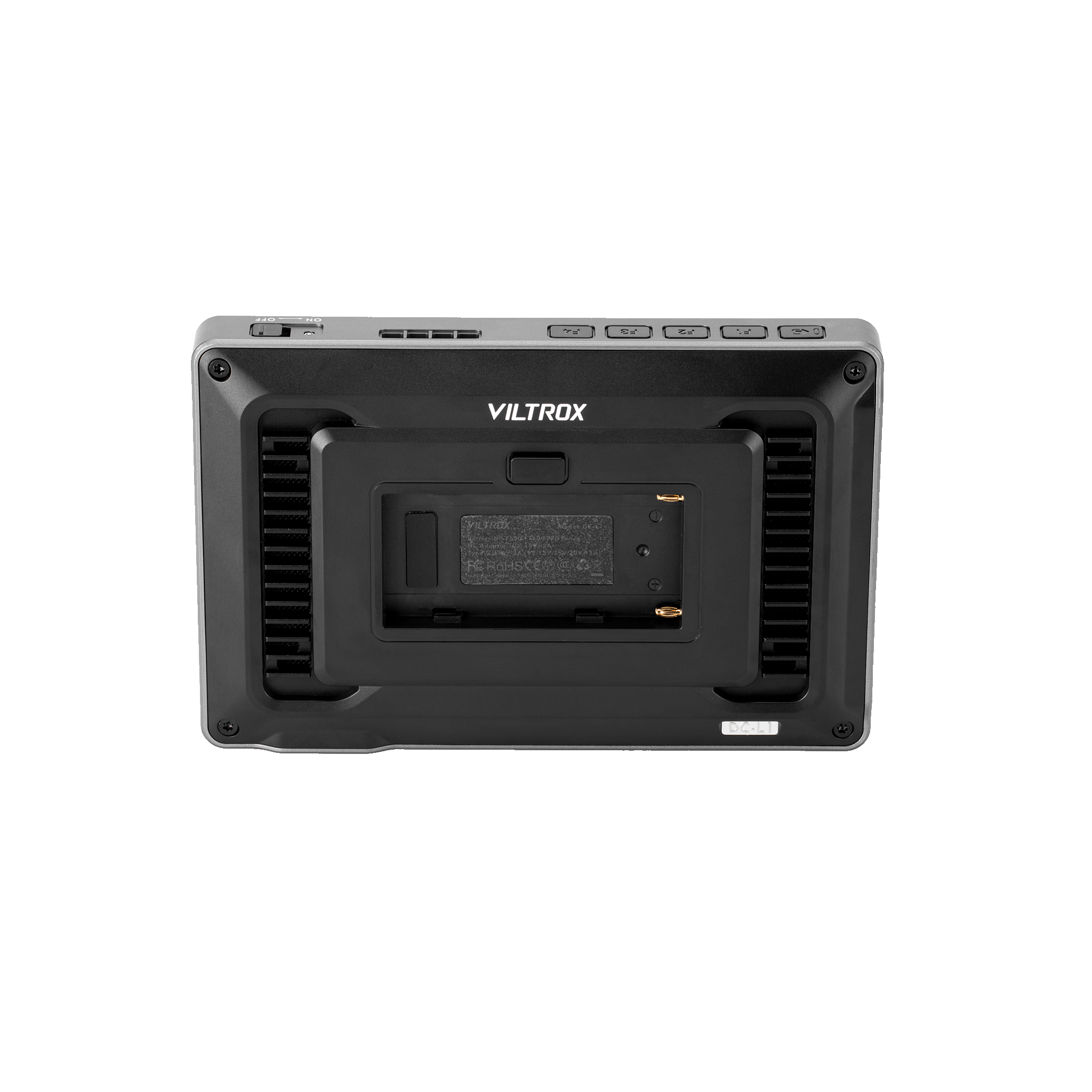

DC-L1

DC-L2

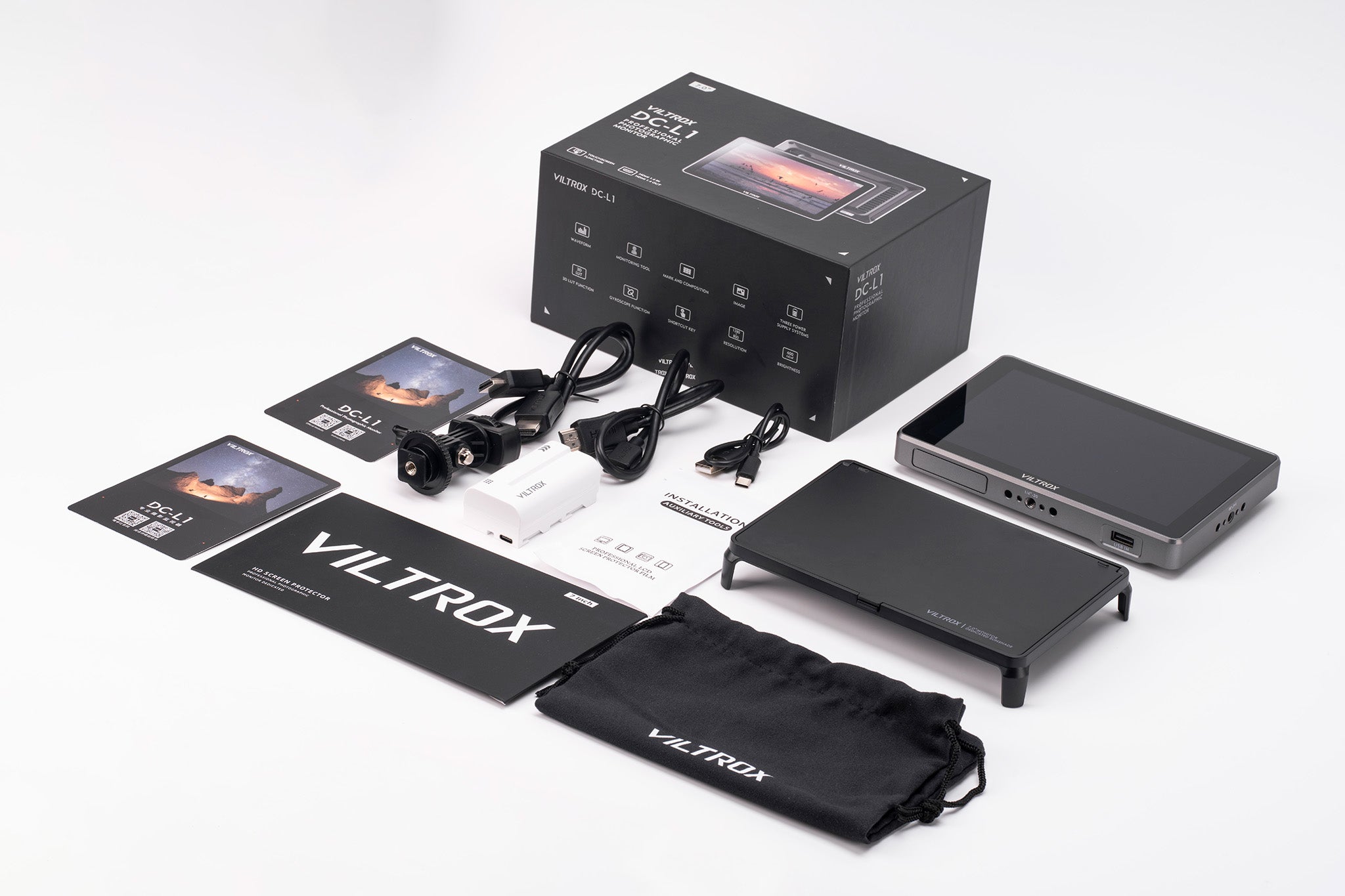

In The Box





  • DC-L1/L2 monitor * 1
  • Detachable hood * 1

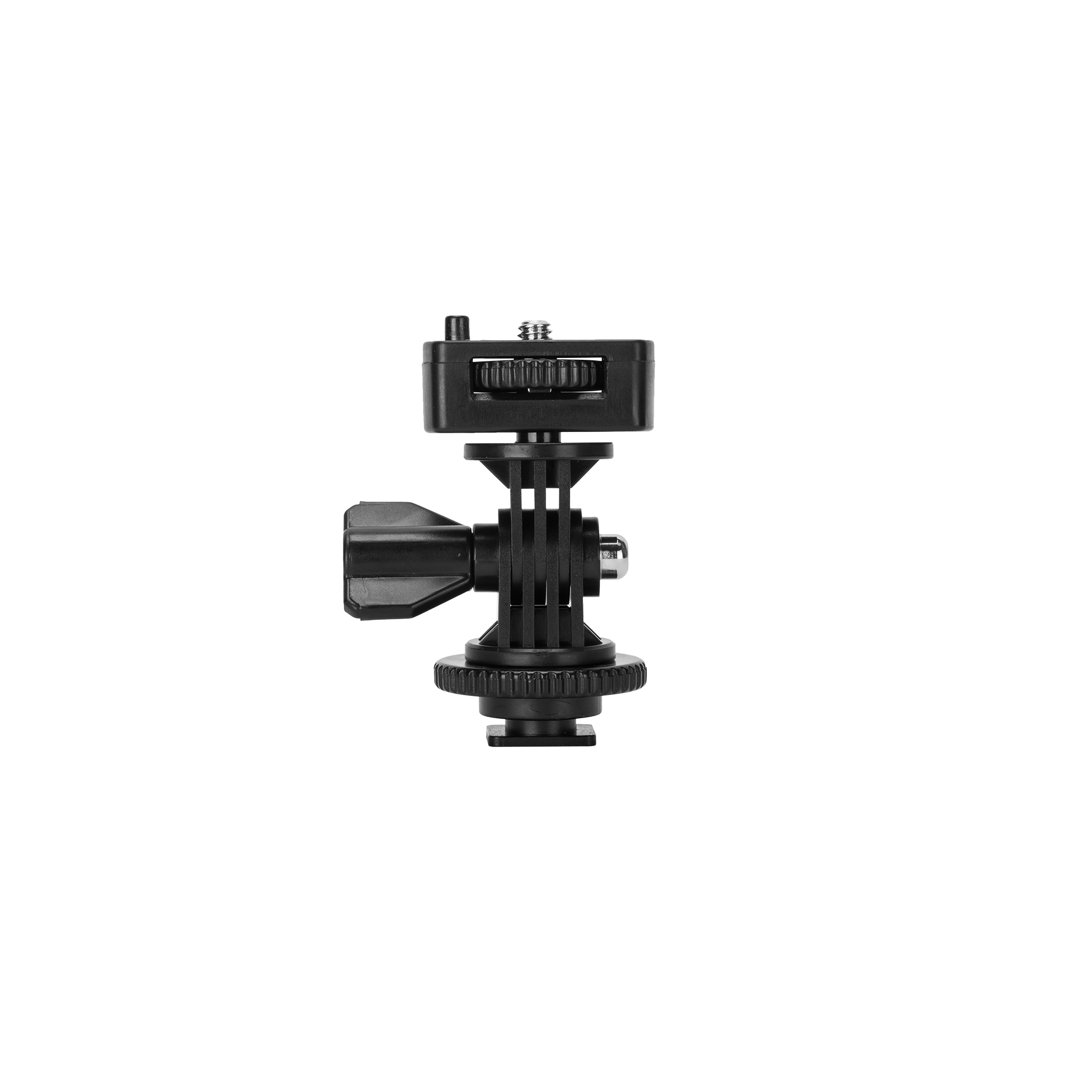

  • Mounting adapter * 1
  • Portable carrying bag * 1

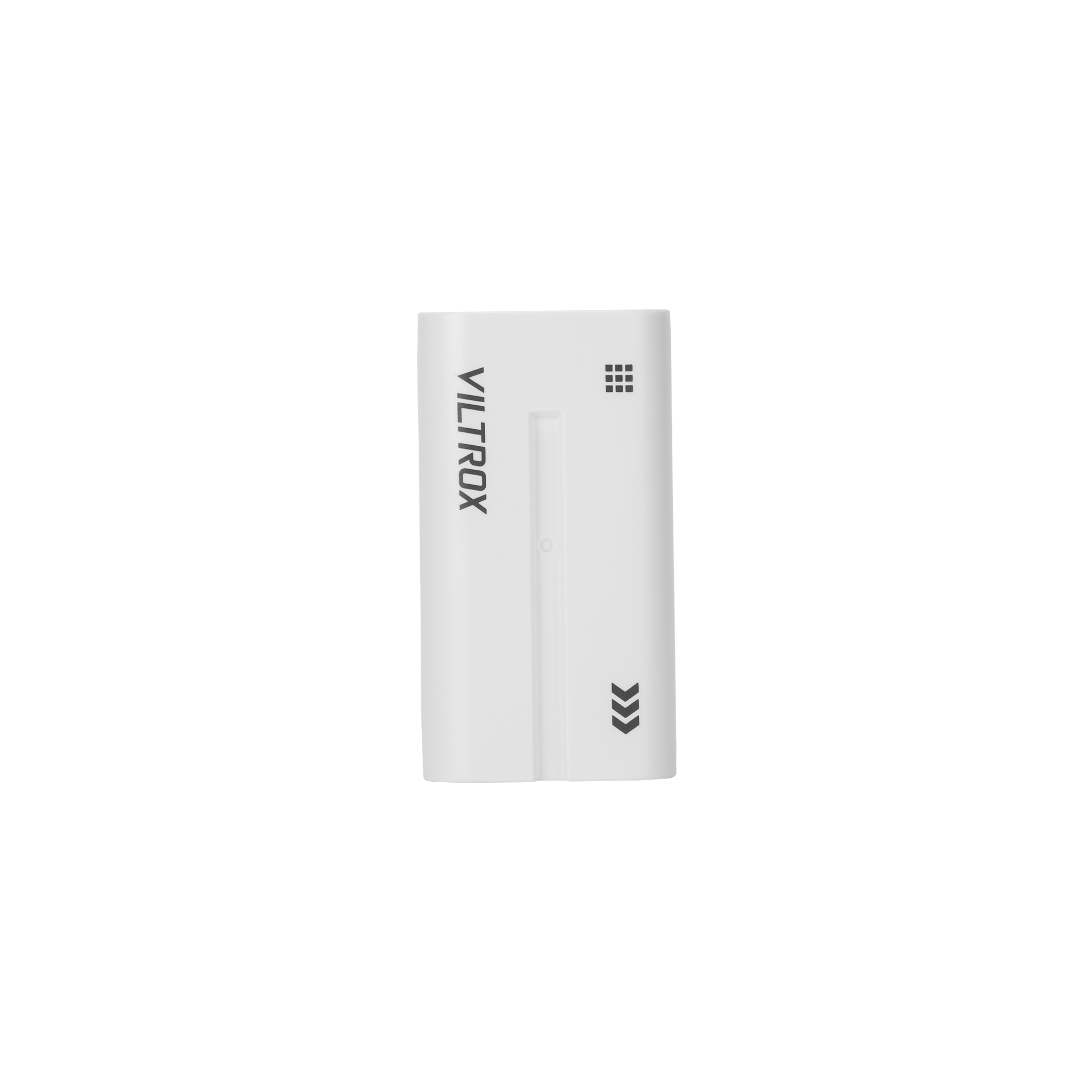

  • NP-F550 battery * 1
  • Digital manual * 1
  • Custom screen protector * 1
  • Auxiliary installation tools * 1
  • Package box * 1
  • USB power cable * 1

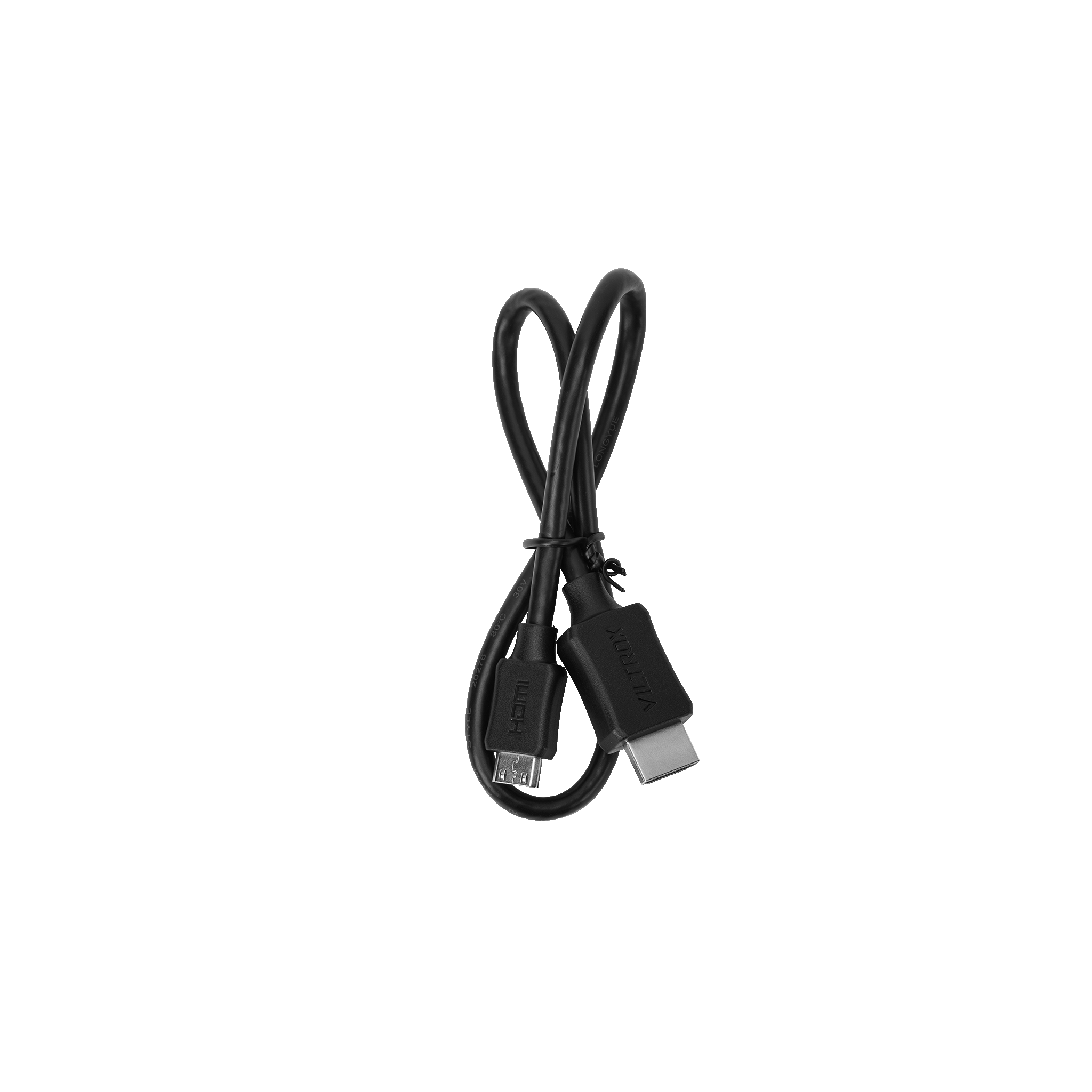

  • Mini HDMI cable * 1
  • Standard HDMI cable * 1

YOUR QUESTIONS. ANSWERED

Have questions? We’ re hereto help

EMAIL:

info@viltrox.com

Battery cannot be taken out？

The battery is locked in place -> press the battery release button, and then
take out the battery.

This device has no power？

The battery has run down > replace the battery.

The power adapter (not accompanied) is disconnected. Please reconnect it properly.

This device cannot bemounted in camera？

Incorrect type of adapter used, please select the correct adapter.

No images are displayed on the screen of this device？

The camera is in power saving mode and some camera operations cannot be performed. Please press the shutter button halfway to exit the powersaving mode. The HDMl high-definition signal cable is disconnected; or the signal source is not turned on, Please reconnect and set up correctly.

When using a camera without a live view function, the captured images cannot be displayed on this device. Please refer to the instruction manual of camera for details.

No images are displayed on the screen of camera？

This depends on the camera. When an HDMl high-definition signal cable is connected to this device, images may only displayed on the screen of this device.

No sound can be heard？

Please ensure that the volume of this device is not set to 0 before connecting headphones.

Make sure that the sound setting of camera is not set to OFF.

Unable to take photos？

This depends on the camera. When it is connected to this device, it may sometimes switch to playback mode. Please switch the camera to photo capture mode before taking photos.

The screen is not clearly visible？

Block out the sun with a hood.

Turn the back light value of this device up.
