Viltrox DC - A1 2800 Nits 7 - Inch Camera Monitor - Viltrox StoreCamera Monitor

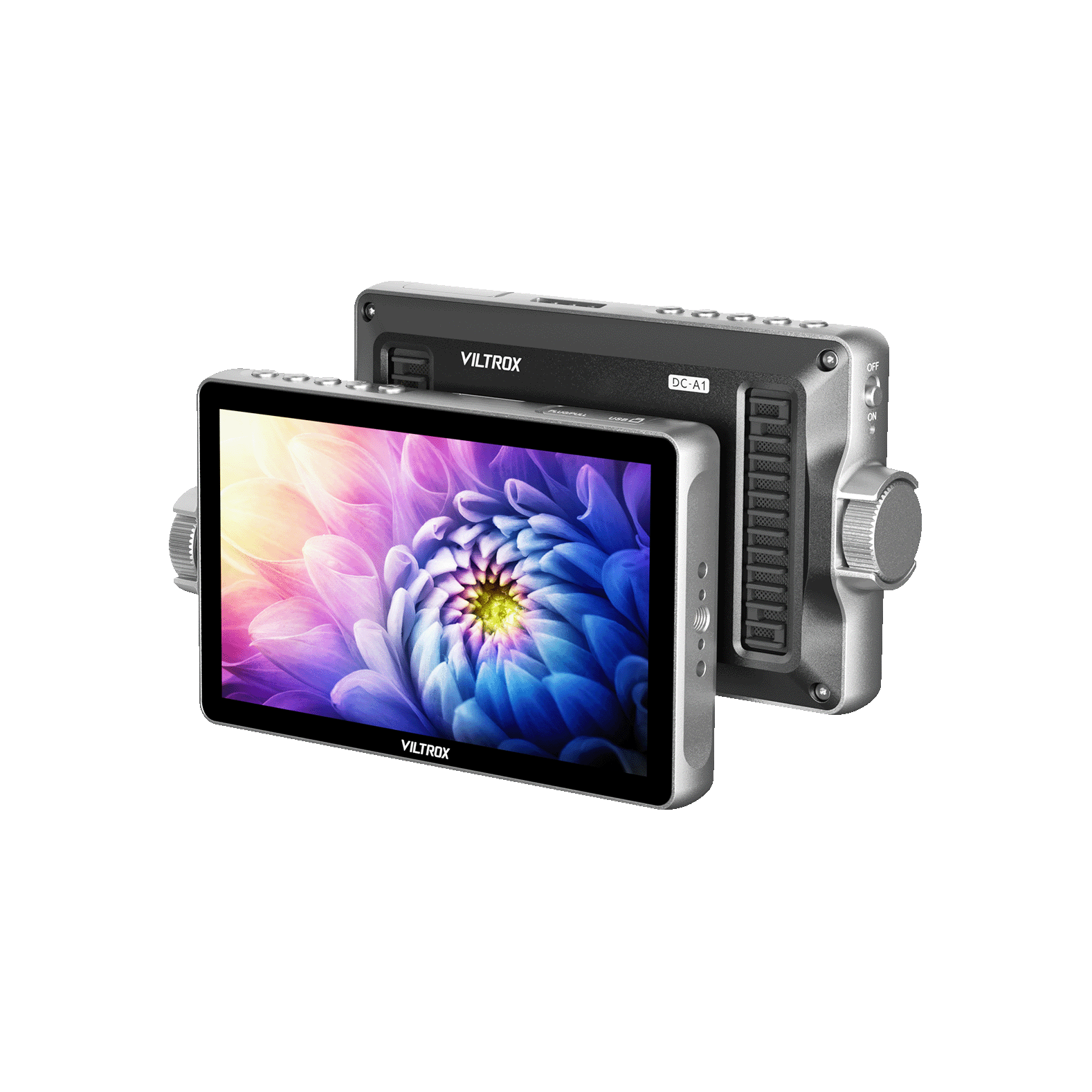

Viltrox DC-A1 2800 Nits 7-Inch Camera Monitor

Name: Viltrox DC-A1 2800 Nits 7-Inch Camera Monitor
Brand: Viltrox
Price: 278.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

Ultra-Bright 2800-Nit Display
Clearly visible even in direct sunlight. Shoot confidently in any lighting condition.

Full Touchscreen & Intuitive Controls
Enjoy smooth, finger-tip operation with a responsive UI. Quickly access key functions via knob and custom buttons.

Pro-Level Monitoring Tools
Includes focus peaking, zebras, waveform, and LUT support. Preview and adjust footage with precise visual control.

True 4K Input & Loop Output
Supports up to 4K 60Hz for seamless, lossless signal monitoring. Ideal for high-end production workflows.

Rugged & Travel-Ready Design
Compact 7″ build, only 348g, with protective sun hood and carry case. Built to handle fast-paced, outdoor shoots.

Multiple Power Options, All-Day Use
Powered via NP-F battery, Type-C, or DC-IN. Keeps you going through long filming sessions.

Specification

Display Screen:

7-Inch IPS Touch Screen

Resolution:

1920 X 1080

Aspect Ratio:

16:9

Contrast:

1000:1

Refresh Rate:

60Hz

Screen Brightness:

2800cd/m²

Viewing Angle:

170º

Pixel Density:

316PPI

Color Gamut:

SRGB

Color Depth:

8Bit

Input Interface:

HDMI 2.0 IN

Output Interface:

HDMI 2.0 OUT

Cooling Fan:

Yes

Weight:

≈348g(Monitor)

Dimensions:

187.8 X 110.5 X 28.5mm

USB Interface:

Support of USB upgrade and 3D Lut file input

Audio Output:

Headphone jack ф3.5mm

Power Interface

DC10V-18V=2A;Type-C≥9V=3A,(9V/12V/15V/20V=3A)

Applicable Battery:

Lithium Battery NP-F550/F750/F970

Working Temperature:

0ºC ～ 40ºC

Storage Temperature:

-20ºC ～ 60ºC

$278.00

Quantity

secure payments

Visa, Mastercard, Amex, Discover, JCB, Diners Club, Maestro, PayPal

Satisfied or refunded

Return or exchange within 14 days after receipt

Quality guarantee

Easy replacement/ refund one year warranty

Local warehouse

Free shipping from local EU & US warehouse

Viltrox DC-L 600 Nits 7-Inch On-Camera Monitor

DC-A1 Camera Monitor

See Brighter Shoot Smarter

DC- A1 Camera Monitor

See Brighter. Shot Smarter

2800 Nits 7’’ IPS Screen

Featuring a newly upgraded 2800-nit high-brightness display, the DC-A1 sets a new benchmark for brightness. Its ultra-bright, true-to-spec performance ensures unparalleled visibility, even in intense sunlight or complex lighting environments. Experience crystal-clear monitoring and take your photography to the next level with unmatched clarity and precision.

4K video camera monitor with IPS screen, 8 Bit color depth.
REC.709 international color standard.
100% ±3% sRGB wide color gamut.

Vibrant Clarity, Every Angle

7" Full HD IPS screen with 1920×1080 resolution and a 170° wide viewing angle—clear, sharp, and vibrant from any perspective.
Full sRGB gamut deliver lifelike color fidelity, while a 1000:1 contrast ratio and 60Hz refresh rate ensure smooth, detailed playback even outdoors.

Effortless Control at Your Fingertips

Operational Innovation

Knob Controls: Easily navigate functions with one-handed operation for fast, precise control.

Streamlined Control System with Custom Shortcuts

Customizable Shortcut Keys

Instantly access key monitoring features with a single touch.

Professional Camera Display for Filmmaking

Full-Screen Touch Control

Featuring an intuitive user interface(UI), the touchscreen makes operation effortless. Whether adjusting brightness, contrast, or accessing shooting assist features, everything is at your fingertips for a more intuitive and seamless creative process.

Crystal-Clear Transmission

Supports up to 4K 60Hz signal input/loop out

The DC-A1 offers 4K resolution at 60Hz, delivering lossless, high-definition signal transmission for a crystal-clear, smooth monitoring experience. Ideal for professional film crews, it meets the demanding standards of high-quality production.

4K video camera monitor with SDI, HDMI loop-out

Viltrox DC-L 7'' Portable Camera Monitor

Precision in Full HD

Sharp and accurate visuals with true Full HD resolution. The 1080P IPS screen delivers consistent clarity and detail from every angle. Even under harsh outdoor light, colors remain vivid and true to life.

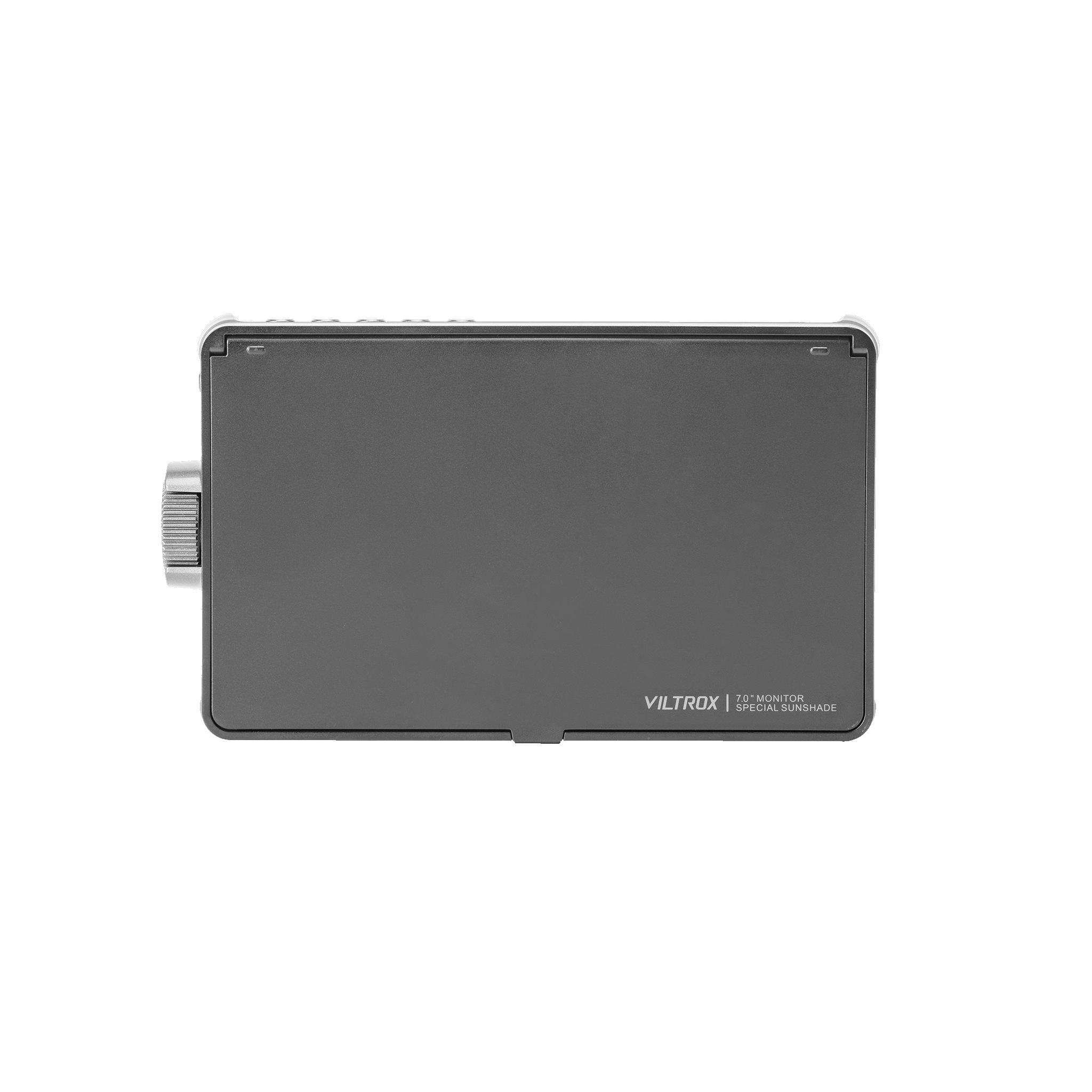

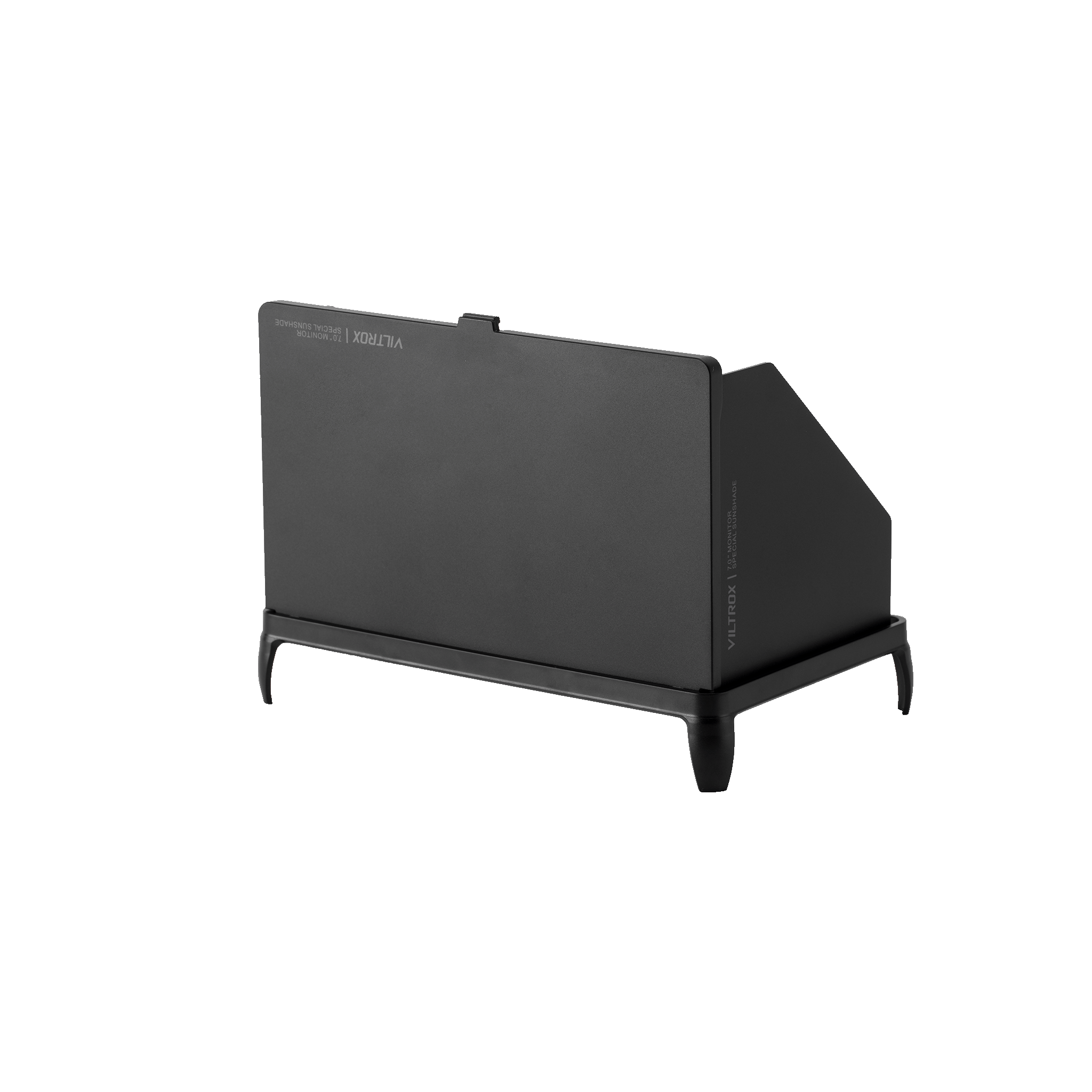

Quick-Release Sun Hood

Snap-on design blocks glare in seconds, ensuring clear viewing under strong light. Folds flat for compact storage, while offering full-edge protection to guard your screen from scratches and extend durability.

Lightweight Camera Display Monitor with Detachable Sun Hood

Perfect Size, Ultimate Portability

7-inch ideal screen size, lightweight at just 348g, 188 x 110 x 28mm compact dimensions. Whether for outdoor shoots or fast-paced filming environments, this monitor is easy to carry and ready for use at a moment's notice.

Intelligent Temperature Control

Stay Cool, Stay Productive

Equipped with an ultra-silent cooling fan and in coordination with the built-in temperature sensor, the fan speed automatically adjusts according to the body temperature of the device, ensuring stable operation even during long hours of continuous work.

Multiple Cooling Solutions

Multiple heat dissipation pathways significantly improve cooling efficiency, ensuring even and thorough heat distribution.

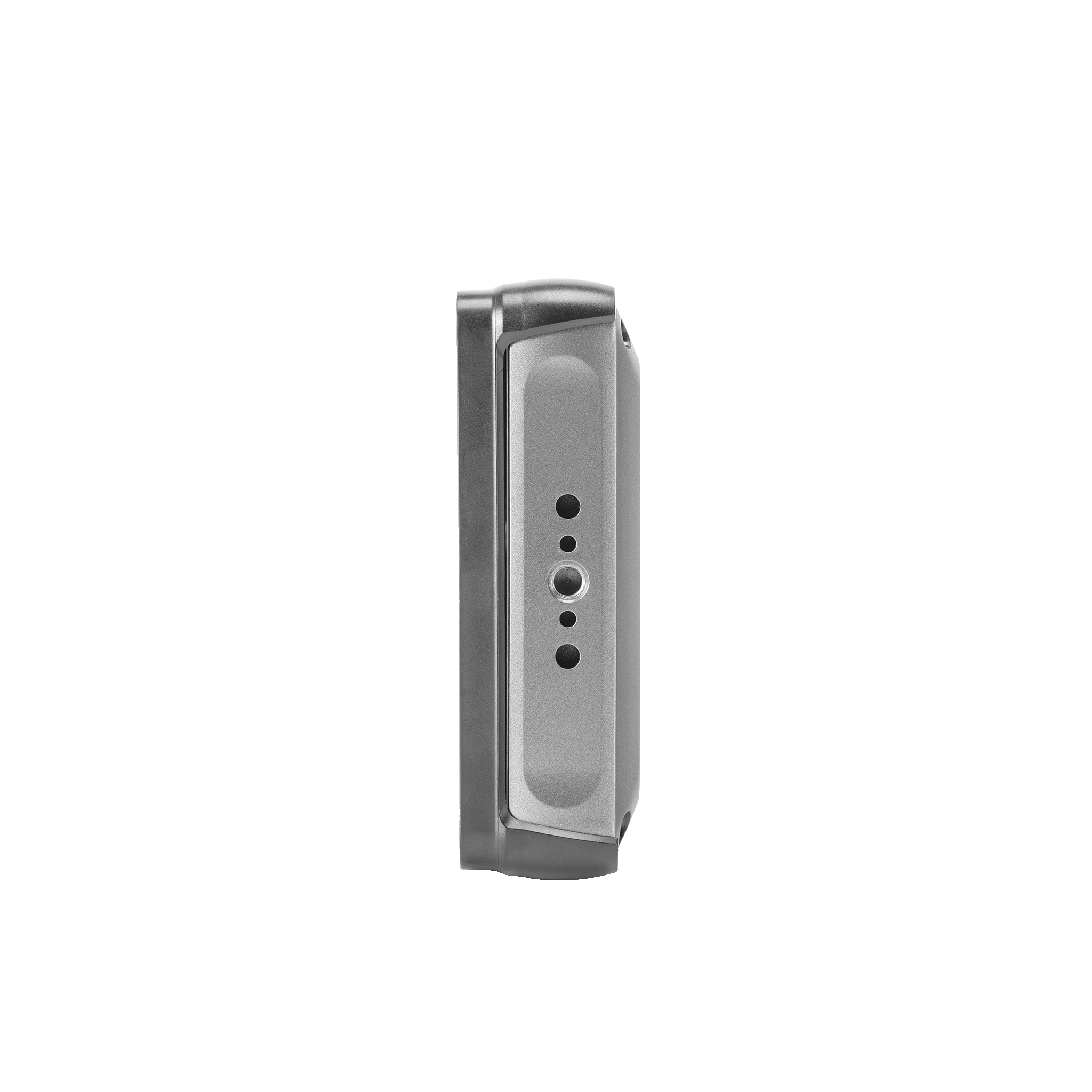

1/4" Screw Holes

Secure mounting for stable, flexible viewing, offering a convenient monitoring experience in both landscape and portrait modes.

Comprehensive Professional Monitoring Tools

Equipped with an extensive suite of professional assist features including histogram, false color, parade waveform, peaking, vectorscope, de-squeeze, LUT table, and more—everything you need for precise visual control in one screen.

#Custom 3D LUT

Import up to 20 user-defined 3D LUTs via USB, real-time monitoring with any camera’s Log profile, color preview on set.

#False Color

Visualize exposure levels with precision—false color overlays help you identify underexposed or overexposed areas instantly.

#Zebra Pattern

Quickly detect overexposed areas, zebra stripes provide a clear, adjustable threshold for precise exposure monitoring.

#Focus Peaking

Highlight in-focus edges with precision, ensuring fast and accurate manual focusing, even in dynamic shooting conditions.

Camera Monitor with Zebra Pattern Function

#Full Waveform

Visualize detailed luminance and color information, for fine-tuning exposure, contrast, and color balance with studio-level accuracy.

#Frame Freeze

Freeze any frame instantly, perfect for checking composition, focus, and exposure with precision before the next take.

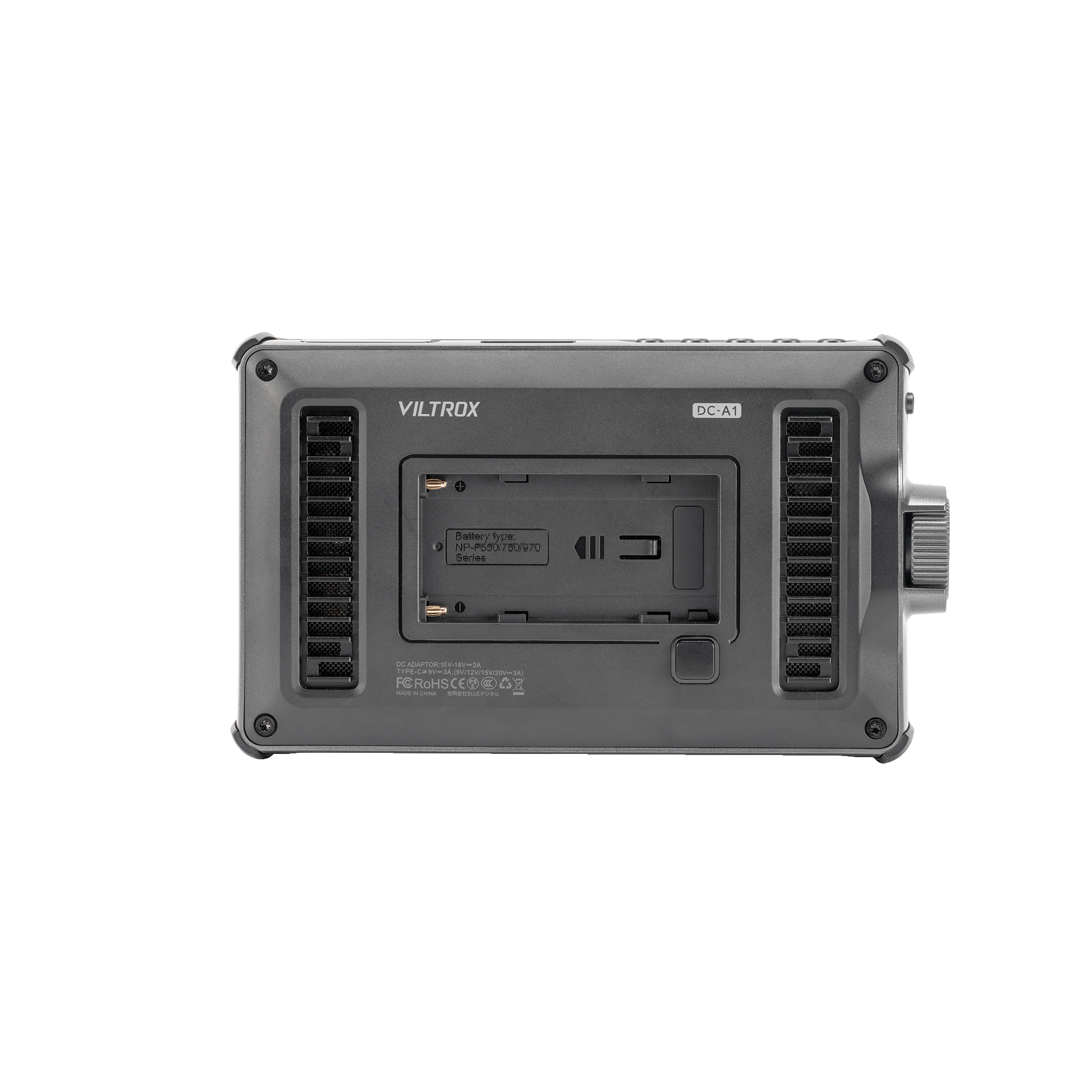

Versatile Power Options

Long-Lasting Battery Life, Shoot Without Limits

Supports NP-F series batteries, DC IN (DC power supply), and Type-C power—ensuring reliable, long-lasting performance for shoots that go the distance.

DC-L Video Monitor with NP-F Battery and Type-C Power Options

Monitor Parts Identification

DC-A1

Filming Monitor for Mirrorless Cameras and Cinema Gear

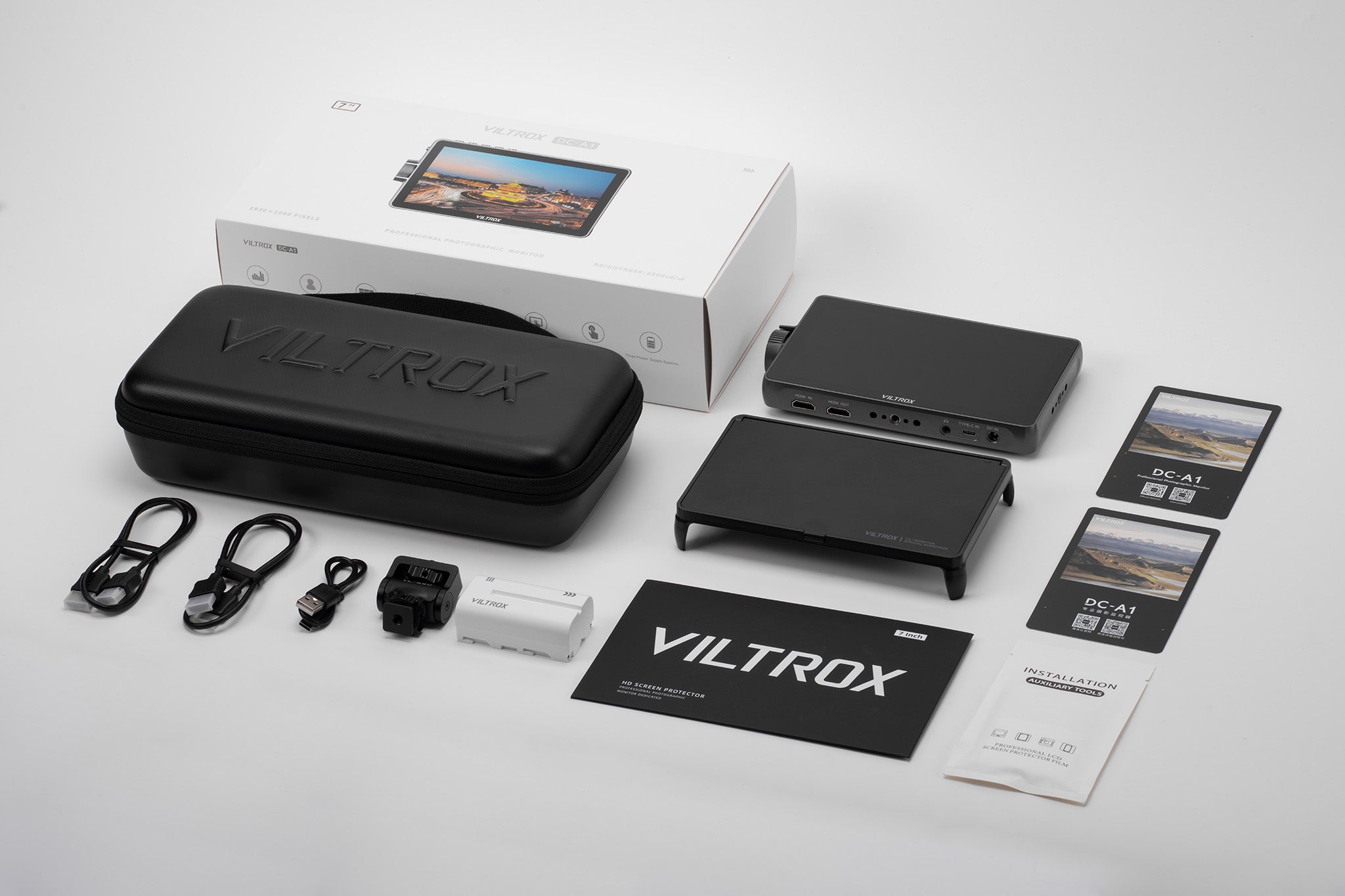

In The Box

DC-A1 monitor * 1
Detachable hood * 1
Custom pan-and-tilt head * 1
Portable carrying case * 1
NP-F550 battery * 1
Digital manual * 1
Custom screen protector * 1
Auxiliary installation tools * 1
Package box * 1
USB power cable * 1
Mini HDMI cable * 1
Standard HDMI cable * 1

YOUR QUESTIONS. ANSWERED

Have questions? We’ re here to help

EMAIL:

info@viltrox.com

Battery cannot be taken out？

The battery is locked in place -> press the battery release button, and then
take out the battery.

This device has no power？

The battery has run down > replace the battery.

The power adapter (not accompanied) is disconnected. Please reconnect it properly.

This device cannot be mounted on camera？

Incorrect type of adapter used, please select the correct adapter.

No images are displayed on the screen of this device？

The camera is in power saving mode and some camera operations cannot be performed. Please press the shutter button halfway to exit the powersaving mode. The HDMl high-definition signal cable is disconnected; or the signal source is not turned on, Please reconnect and set up correctly.

When using a camera without a live view function, the captured images cannot be displayed on this device. Please refer to the instruction manual of camera for details.

No images are displayed on the screen of camera？

This depends on the camera. When an HDMl high-definition signal cable is connected to this device,

images may only displayed on the screen of this device.

No sound can be heard？

Please ensure that the volume of this device is not set to 0 before connecting headphones.

Make sure that the sound setting of camera is not set to OFF.

Unable to take photos？

This depends on the camera. When it is connected to this device, it may sometimes switch to playback mode. Please switch the camera to photo capture mode before taking photos.

The screen is not clearly visible？

Block out the sun with a hood.

Turn the back light value of this device up.
