Viltrox DC-550 5.5 Inch Portable HD Camera Monitor
Viltrox DC-550 5.5 Inch Portable HD Camera Monitor
High-brightness display screen with 1920×1080 resolution and 1200:1 contrast. Ultra-wide angle design for clear monitoring from different angles. Professional monitoring software for creative effects.
Couldn't load pickup availability
Share
-
Secure payments
Visa, Mastercard, Amex, Discover, JCB, Diners Club, Maestro, PayPal
-
Satisfied or refunded
Return or exchange within 14 days after receipt
-
Quality guarantee
30-Day Warranty, 1-Year Limited Warranty
-
Top-notch support
Contact us by chat, mail, phone
Viltrox DC-550 Series Camera Monitor

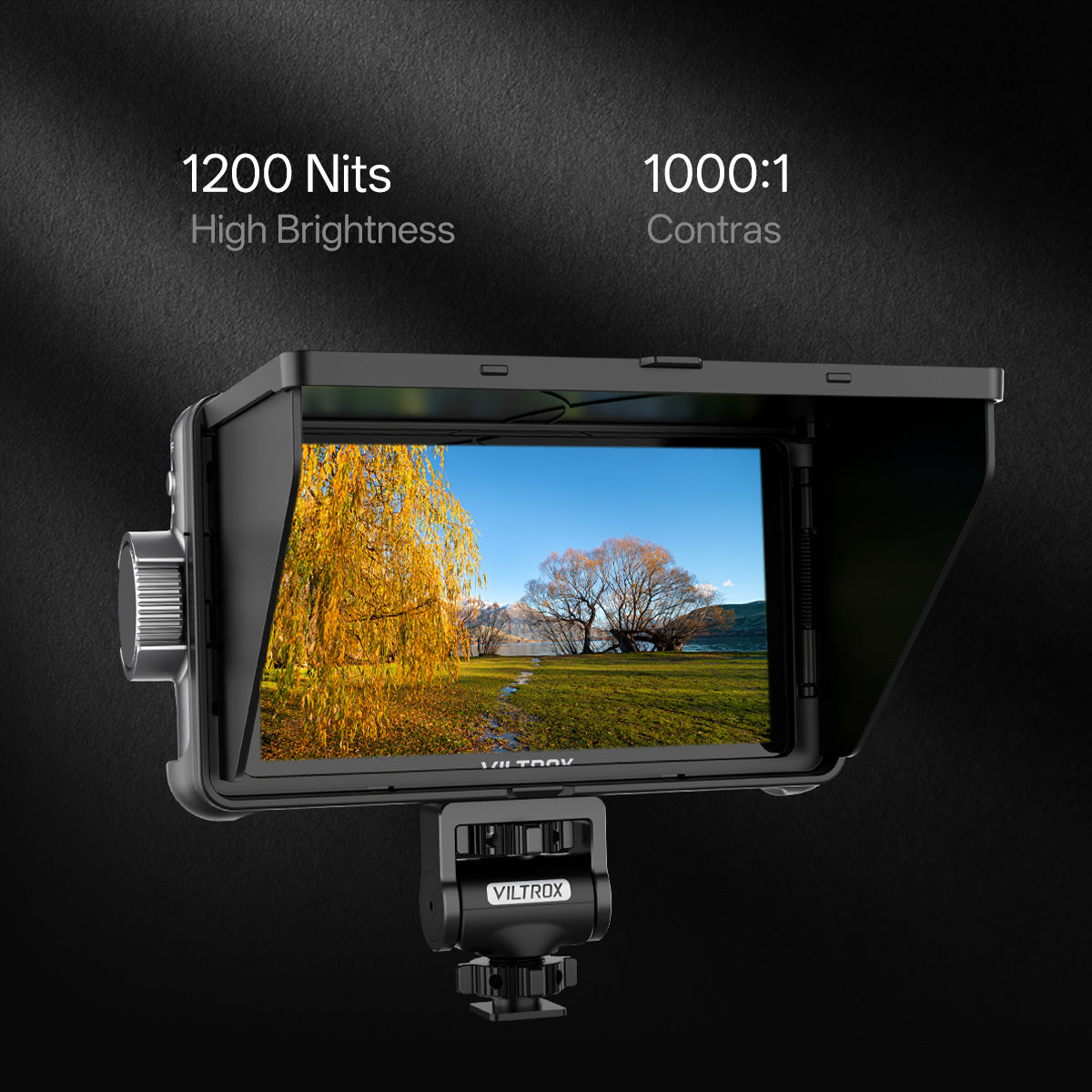

1200 Nits High Brightness High Definition
1200 Nits high-brightness display screen ensures high definition monitoring with 1920X1080 pixels resolution, 1200:1 contrast, and 178° ultra-wide angle design.
4K HDMI Input/Loop Out
Support 4K 30Hz signal input and output for clear and smooth monitoring. Utilize HDM 1.4 interface.
Professional Color Adjustment True Color Rendering
Viltrox DC-550series follows REC.709 color standard with precise 3D LUT for natural, distortion-free colors.
Comfortable Touch Screen Settings
DC-550 Pro is a touch screen version,which covers touch screen & button settings;
DC-550 is a non-touch screen version, only supports button settings.

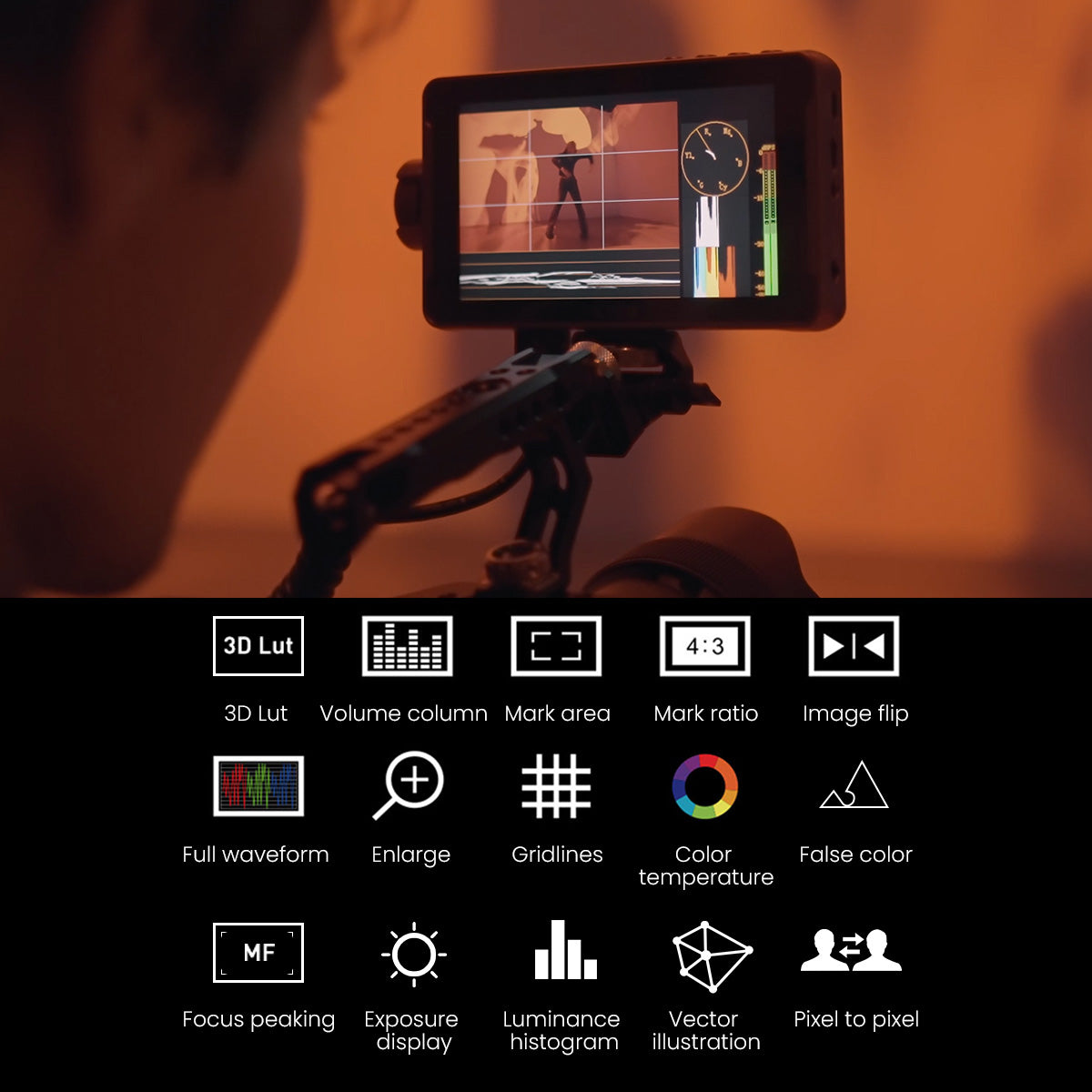

Professional Monitoring Software-3D LUT
DC-550 series offers rich monitoring functions and the ability to import 3D LUT through an SD card for creative editing effects.
Custom 3D LUTS
Import 3D LUT via SD card for easy use with any camera Log mode and achieve various creative styles in post-production.
Image Zoom Function
Double-finger touch screen for viewing details, Physical buttons for image size control
Quick-released Hood
Detachable hood design for quick release, blocks light interference for better outdoor filming.
 |
 |
 |
|
| Model | DC-550 Lite | DC-550 | DC-550 Pro |
| LED screen | 5.5-inch | 5.5-inch | 5.5-inch |
| Resolution | 1920X1080 pixels | 1920X1080 pixels | 1920X1080 pixels |
| Brightness | 400cd/m² | 1200cd/m² | 1200cd/m² |
| Input signal interface | HDMI1.4 signal input | HDMI1.4 signal input | HDMI1.4 signal input |
| Output signal interface | HDMI1.4 signal output | HDMI1.4 signal output | HDMI1.4 signal output |
| Audio | Headphone jackφ3.5 | Headphone jackφ3.5 | Headphone jackφ3.5 |
| Firmware upgrade | SD card upgrade | SD card upgrade | SD card upgrade |
| Power interface | DC12V-18V=2A、Type-C | DC12V-18V=2A、Type-C | DC12V-18V=2A、Type-C |
| Applicable battery | interface≥5V=3A | interface≥5V=3A | interface≥5V=3A |
| Operating temperature | NP-F550/F570/F750/F770/F960/F970 | NP-F550/F570/F750/F770/F960/F970 | NP-F550/F570/F750/F770/F960/F970 |
| Storage temperature | +0 to+40°C(+32 to+104°F) | +0 to+40°C(+32 to+104°F) | +0 to+40°C(+32 to+104°F) |
| Dimensions | -20 to+60°C(-4 to+140°F) | -20 to+60°C(-4 to+140°F) | -20 to+60°C(-4 to+140°F) |
| Weight | ≈165X91X28.5mm | ≈165X91X28.5mm | ≈165X91X28.5mm |
